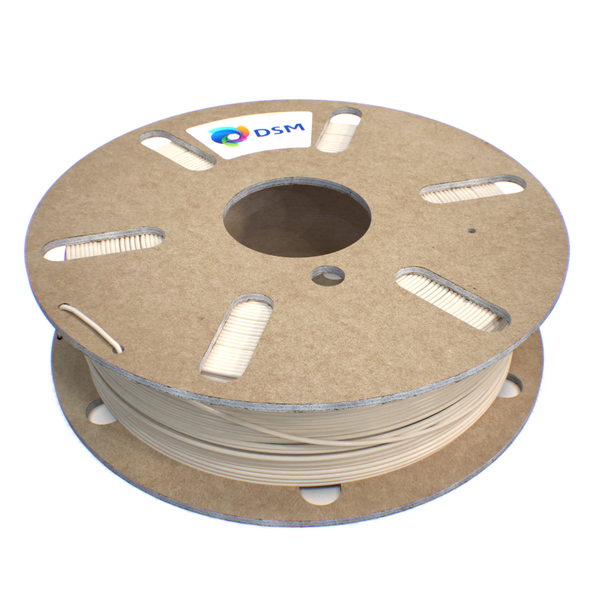

Addigy F1030 FR 1.75mm | 500g

£9.95

weight

colour

Quantity

Item number: 8719956553554

Key Features:

Easy to print
Open platform solution
First-ever UL Blue Card certified PA6/66 3D printer filament for open systems
Validated in an UL-certified lab, the DSM material meets a UL 94 rating of V-0 at 1.6 & 3.2 mm wall thickness and a UL 94 V-2 rating at 0.85mm wall thickness.
Environmentally friendly 3D printer filament that is halogen-free
A cost-effective alternative to other flame retardant materials

Application:

Automotive connectors
Electric and electronic connectors and enclosures
Lighting enclosures

Description

Addigy F1030 FR is a PA6/66 PA (nylon) type of 3D printer filament by Covestro. It is the first-ever UL Blue Card certified PA6/66 3D printer filament and it meets the UL 94 V-0 flammability standards.

Addigy® F1030 FR applications can be printed that require UL certification on flammability, such as enclosures for electric or lighting applications, connectors, and more. UL’s Blue Card program is specially developed for the certification of materials for additive manufacturing and Addigy® F1030 FR is completely halogen-free, making it environmentally friendly.

Addigy® F1030 FR is the replacement for Novamid® AM1030 FR filament. The product is the same, only the name has been changed.

Specification


Diameter	1.75mm
Net weight	500g

Recommendation

Temperature

Print temp: 265 – 275° C

Heat bed: 110 – 115° C

Printing Speed

50mm/s

Fan Speed

Surface

PA Adhesive

Closed Chamber

recommended

Nozzle

≥ 0.4mm

Note

Storage and conditioning

Addigy® F1030 FR is supplied in airtight, moisture-proof packaging at a moisture level <0.05 w%.

In order to prevent moisture pick up and contamination, supplied packaging should be kept closed and undamaged. For the same reason, partially used bags should be sealed before re-storage. Allow the material that has been stored elsewhere to adapt to the temperature in the processing room while keeping the bag closed. To prevent moisture condensing on filaments, bring cold filaments up to ambient temperature in the print shop while keeping the packaging closed.

In case the filament has become wet, it should be dried. Using a hot air oven at 80°C for at least 4h is recommended. When storing the filament after printing, it is advised to seal the bag and add silica gel to the bag to keep the filament as dry as possible.
