Formfutura STYX PA6-GF30 1.75mm | 500g

Formfutura STYX PA6-GF30 1.75mm | 500g
£42.99
Item number: 8720629064161

Key Features:

    • Easy to print on open desktop 3D printers
    • Reinforced with 30% glass fibers
    • High compressive strength
    • Heat resistant up to 180°C
    • High wear, tear, and abrasion resistance
    • Excellent chemical resistance

    Application:

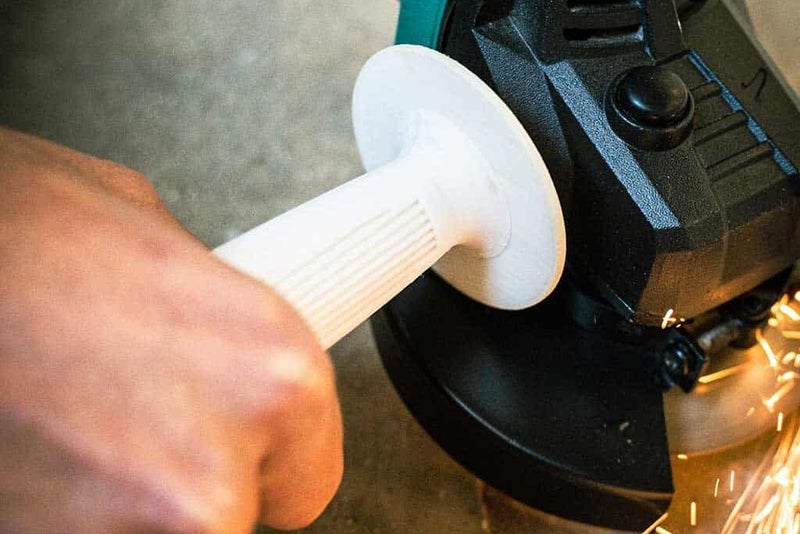

    • Automotive parts
    • Connectors and switches
    • Housings for electronic devices
    • Gear wheels, bearings, and sliding elements
    • 3D printing machinery parts
    • Dynamically stressed parts

    Large Spool available on request

    Available Weight: 2300g

    Available Weight: 4500g

    STYX PA6-GF30 combines all benefits of STYX PA6 filament plus 30% glass fibers. STYX PA6-GF is a high-performance glass fiber-reinforced PA6 filament. The added glass fibers make this filament strong and stiff, without being brittle. This engineering filament is very easy to 3D print on open desktop machines. No enclosure, or heated chamber is needed. Its low shrinkage factor and perfect layer adhesion.
    Diameter 1.75mm
    Net weight 500g

    Temperature

    Print temp: 255 - 295° C

    Heat bed: 90 – 110° C

    Printing Speed

    Fan

    Fan speed: 0 - 30%

    Surface

    Adhesive: Magigoo

    Closed Chamber

    No required

    Nozzle Diameter

    ≥ 0.1mm

    Note

    Please be aware that glass fiber reinforced filaments contain a relatively high concentration of extremely hard glass fibers, which have an abrasive nature. In general these glass fibers will accelerate the nozzle-wear of brass nozzles, much faster than unfilled filaments. We recommend to use ruby nozzles or hardened steel nozzles.

    Documents

    TECHNICAL DATA SHEET
    PDF – 180.6 KB 105 downloads

    Manufacturer

    • FormFutura

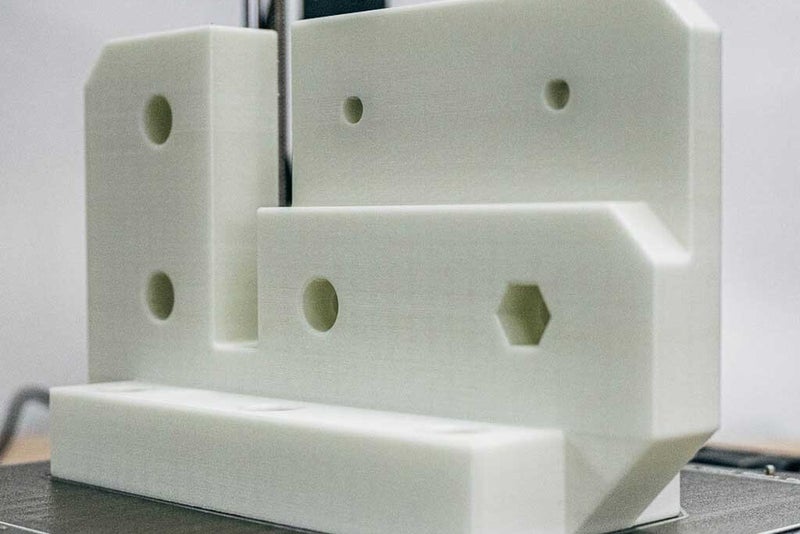

    STYX PA6-GF30 Prints
