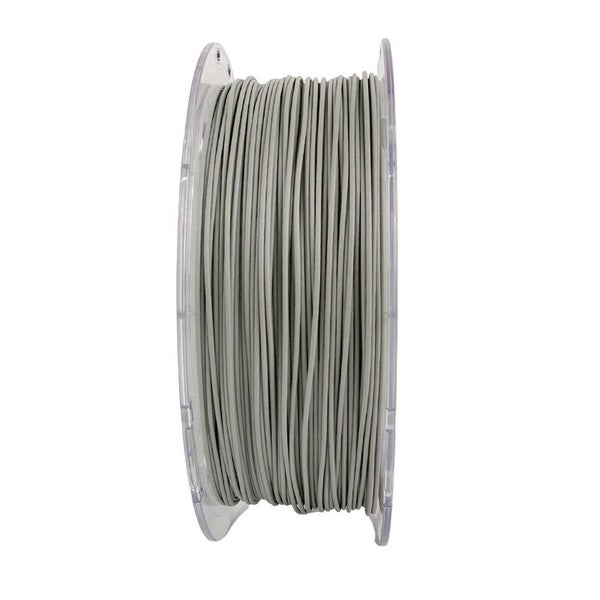

PET+GF15 1.75mm | 1000g

PET+GF15 1.75mm | 1000g
£84.99
Item number: PET-GF-1.75-BLK-1KG

Key Features:

  • 15% glass fiber reinforced
  • Excellent mechanical properties
  • Excellent electrical and thermal properties
  • High degree of printability for complex structures
  • Compatible with S-PET Quick-Remove Support Material
  • Good chemical resistance
  • Good dimensional stability
  • No warpage and no shrinkage
  • Low moisture absorption
  • High impact strength
  • Creep resistance
  • No smell

Application

  • Automotive
  • Functional prototypes
  • Jigs and fixtures
  • End-use parts
PET-GF 15% glass fiber reinforced Polyethylene Terephthalate FDM material, specially developed for the FDM 3D printing process, and its substrate material is PET engineering plastic with low moisture absorption, high strength, creep resistance, excellent chemical resistance, and high heat resistance. With good dimensional stability, no warpage and no shrinkage, and no smell, no heating chamber are required during the printing process. It can be used with S-PET Quick-Remove Support Material to solve the problem of poor molding effect of supporting the surface of complex model.
Diameter 1.75mm
Diameter Tolerance ± 0.03mm
Max Roundness +0.03mm
Net weight 1000g

Temperature

Print temp: 280 – 320° C

Heat bed: 60 - 80° C

Printing Speed

30 - 90 mm/s

Fan

0%

Surface

PEI or Coating with PVP glue

Closed Chamber

No required

Nozzle Diameter

0.4 - 1.0 mm

Smart Fiber Reinforced Technology

Controlling the dispersion and distribution of chopped carbon fibers within the material matrix during the extrusion process, the fibers form a mesh skeleton structure within the material and bear most of the load transferred by the material matrix. Smart Fiber Reinforced Technology greatly improves the mechanical properties and heat resistance of the material, and releases the internal stress during the printing process through the fiber mesh structure, resulting in good dimensional stability of the printed part and no warpage.

Low creep

The molecular chain structure of PET is highly regular and has a rigid benzene ring structure, so that PET has better mechanical properties and less deformation under long-term load. Compared with PA and PC materials, PET has better creep-resistance.

Documents

TECHNICAL DATA SHEET
PDF – 337.5 KB 213 downloads

Manufacturer

  • Melovy

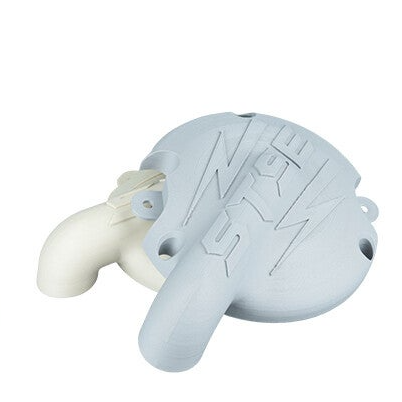

PET-GF Prints
