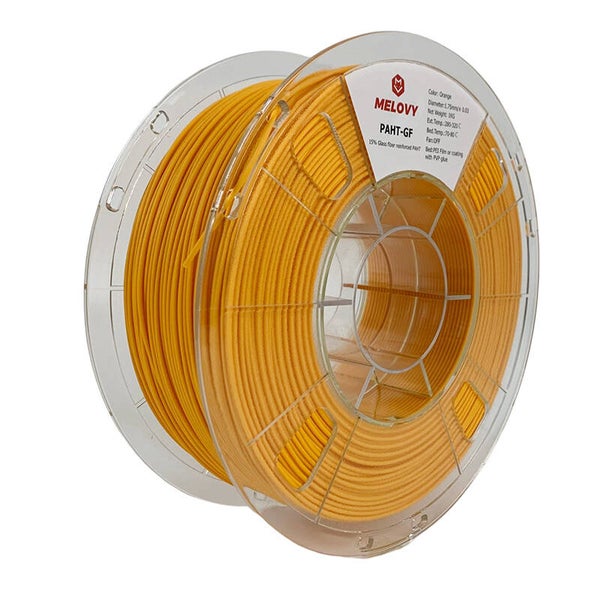

PAHT-GF Orange 1.75mm /1000g
Sold out
£99.99
Key Features:
-
Excellent mechanical properties
-
Excellent chemical resistance
-
Good dimensional stability
-
High strength
-
High wear resistance
-
High heat resistance
-
No warping and no shrinkage
-
Good layer adhesion
Application
-
Automotive
-
Aerospace
-
Functional Parts
-
Spare Parts
-
Jigs, fixtures and tooling
| PAHT-GF (High Temperature Polyamide Glass Fiber Reinforced) is specially developed for FDM 3D printing process. The base material is made of high temperature nylon and the addition of glass fiber improves mechanical properties, heat resistance, dimensional stability, reduces shrinkage, warping and layer adhesion. |
| Diameter | 1.75mm |
| Diameter Tolerance | ± 0.03mm |
| Max Roundness | +0.03mm |
| Net weight | 500g |
| Mechanical Properties Test Method | ISO178, ISO180, ISO527, ISO1183 |
| Nozzle Temperature | 300-320°C |
| Bed Temperature | 70-90°C |
| Printing Speed | 30-90 mm/s |
| Fan | 0% |
| Closed chamber | not required |
| Surface | PEI or coated with PVP glue |
Manufacturer
-
Melovy
