CREATBOT F430 – 420°C VERSION
CREATBOT F430 INDUSTRIAL 3D PRINTER
CreatBot F430 is a low-cost high temperature 3D printer for additive manufacturing with PEEK filament and other high-performance materials that require high extrusion temperatures.
Fully enclosed chamber can block all external interference and reduce noise.
Hot chamber device provides constant room temperature 70°C, which is able to prevent prints from warping and deform.
Nozzle Temperature Up To 420 ℃
D600 and D600 Pro equipped with the 4th generation 1.75mm dual extruders and hotends. The left extruder equipped with 260°C hotend, it is able to print with PLA, ABS, PC, Nylon, Carbon fiber, Flexible, etc. The right extruder 420°C hotend is made of martensite steel, which is able to print high performance materials. The dual hotend is replaceable, which provide more possibility on your application.
High Precision & High Speed
We exclusively research and develop the extruder feeding system and guide rail, which support high-speed printing. Its printing accuracy can reach high to 0.04mm, and it allows to extrude filament steady without block.
Fully Enclosed + Hot Chamber 70°Cut
Fully enclosed chamber can block all external interference and reduce noise. Hot chamber device provides constant room temperature 70°C, which is able to prevent prints from warping and deform.
Outage Restore & Filament Detection
The printer will automatically memorize the current position and save print data. Lower the platform and withdraw filament when power off suddenly. It will continue to print from the last stopped point after power on. No trace! The printer will avoid invalid printing by stoping print and warning when filament runs out.
HEPA Air Filter out
The air filter system can adsorb impurities and gases that generated by printing special filament like ABS, Nylon, PC, more safe and environmental protection, which is more suitable for house, school, office space.
Glass-Ceramic Platform and auto leveling
The printer equipped a heatable glass-ceramic platform, which has high thermal efficiency and best low-expansion coefficient, so it doesn't deform when heating and cooling. Most materials can be extruded and sticked to bed very well. Auto leveling sensor, through the Z axis intelligent compensation table height in the printing process to achieve fully automatic leveling.
Technical Specification
Printing
| Print Technology | Fused Deposition Modeling（FDM） |
| Build Volume | Single Extrusion: 400*300*300 mm Dual Extrusion: 320*300*300 mm |
| Number of Nozzles | Double |
| Filament Diameter | 1.75 mm |
| Filament Compatibility | PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PETG, HIPS, PP, Flexible, TPU, PVA, PEEK, etc. |
| Nozzle Diameter | 0.4mm (0.3 0.5 0.6 0.8 1.0mm) |
| Print File Type | STL, OBJ, AMF, Gcode |
Speed
| Best Printing speed | 55 mm/s |
| Max. Printing speed | 180 mm/s |
Temperature
| Max. Nozzle Temperature | 420 ℃ |
| Max. Bed Temperature | 140 ℃ |
| Max. Chamber Temperature | 70 ℃ |
Software
| Software | CreatWare, Simplify 3D, Cura, Slic3r, etc |
| Supported File Types | STL,OBJ,AMF |
| Operating Systems | Win7/8/10, macOS |
Electrical
| Power Requirements | 100V-110V or 200V-240V / 50-60Hz(Depending on your country's default voltage) |
| Rated Power | 220V: 2700W, 110V: 2200W |
| Screen | 4.3'' Touch Screen |
| Storage Media | U Disk |
| Connectivity | USB |
Special Function
| Outage Restored | Save data when power is off |
| Filament Detection | Pause printing when filament run out |
| Automatic Shut-down | Turn off the power automatically when printing is complete |
Mechanical
| Construction | Power-Coated Steel, Aluminum Casting for Motion Components |
| Build Plate | Glass Ceramic Panel |
| Build Plate Leveling | Automatic |
| Extruder | Directly Drive |
| Stepper Motors | 1.8° Step Angle with 1/16 Micro-stepping |
| X Y Positioning Precision | 12.7 μm |
| Z Positioning Precision | 1.25 μm |
Size & Weight
| Product Dimensions & Weight | 620*485*680 mm 48 kg |
| Packing Size & Weight | 750*580*720 mm 62 kg |

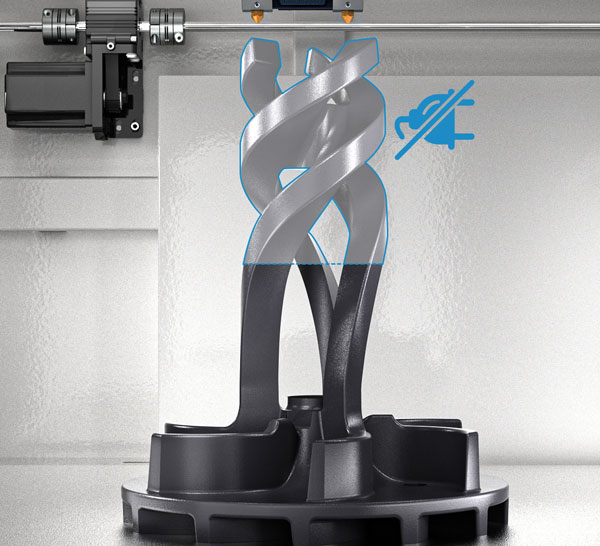

Printing in single and dual-extrusion modes
