CREATBOT PEEK-300 INDUSTRIAL GRADE 3D PRINTER

£13,200.00

Quantity

CreatBot PEEK-300 is an industrial grade 3D printer, focusing on high performance materials such as PEEK, PEKK, PEI (Ultem), etc. It is designed for high reliability and economical 3D printing of high-performance functional materials.

Ultra high temp. nozzle/bed
Advanced Thermal System
Direct Annealing System
Water cooling/ Heat isolation system
Medical/Industry application

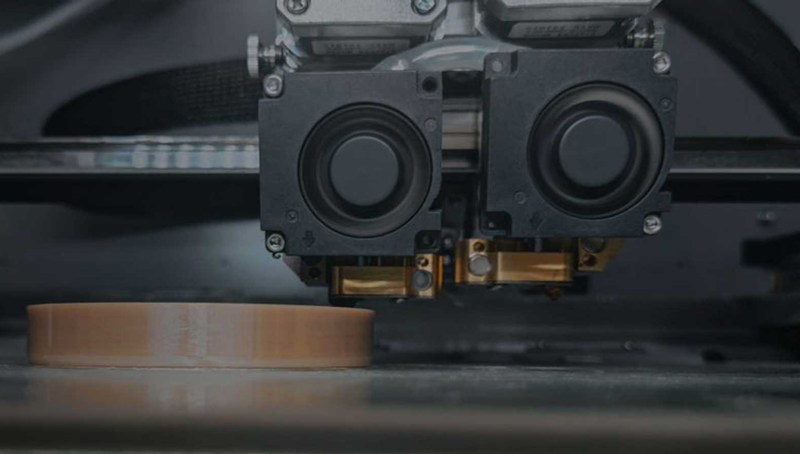

Smart Auto-rising dual extruders 500 ℃

The PEEK-300 equipped with CreatBot new technology smart Auto-rising dual extruders. Water cooling, DAS system, Auto-rising extruders. The dual nozzle temperature up to 500°C. You can print any 3D printer materials in the world. We can say it is best choice of polymer materials. Whatever it is, the way you tell your story online can make all the difference.

Hotbed 200 ℃

Common but necessary.
Base of printing big models with no warping.

Hot Chamber 120°C

Outstanding and important.
The protector of no cracking printing.

Cooling System

Cooling system is one of the important parts to constitute the whole thermal system. It is made of
(1) liquid cooling. Circulating liquid can be used effectively for a long time.

(2) Air pump cooling. Air pump provide cold air from outside instead of hot air inside chamber.

Direct Annealing System

Direct Annealing System (DAS), the world's first and extraordinary technology
by CreatBot. Annealing process is instant controllable during printing. It aims to
provide best quality parts in one time without warping and cracking printing of
big size functional materials. (The technology is patent protected and available
by CreatBot only)

DAS annealing process features:

1) Instantaneously
Finished during printing process, no need secondary treatment in oven.

2) Completely
The annealing process point to every extruded filament, not the whole printed model. The internal structure of the whole model could not be fully crystallized or will deform in oven.

3) Controllable
The surrounding temperature can be adjusted to 0-200 °C. the different requirements of toughness and strength can be met by adjusting the DAS temperature function at different material parts.

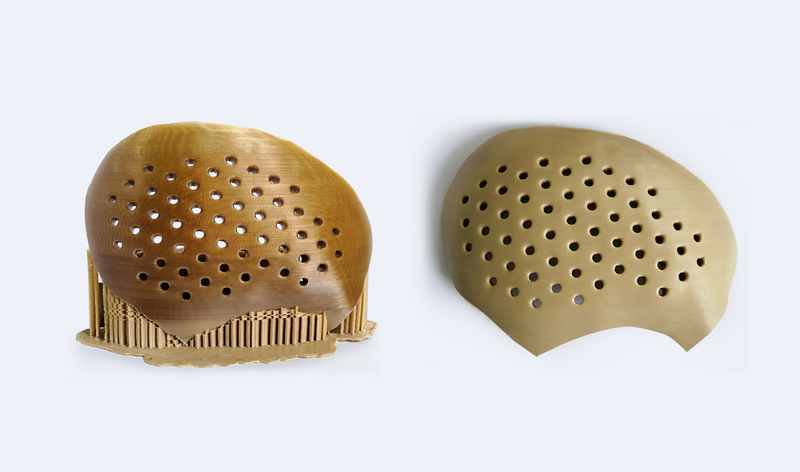

Before Annealing

After Annealing

Before Annealing

After Annealing

Technical Specification

Printing

Build Volume	Single Extrusion: 300300400 mm Dual Extrusion: 240300400 mm
Filament Diameter	1.75mm
Number of Nozzles	Dual Extruder
Print Speed	10-120mm/s
Nozzle Diameter	0.4mm (0.3~1.0mm optional)
Filament Compatibility	Engineering Plastics:PLA, ABS, ASA, PC, Nylon, PETG, PVDF,TPU,Carbon Fiber；High temperature Material:UltraPA, UltraPA-GF, UltraPA-CF, PPSU, PEI(ULTEM)；Ultra-performance material:PEEK,CF-PEEK (Carbon fiber), GF-PEEK (glass fiber), PEKK, etc.

Electrical

Input Power	200V~240V, 20A
Rated Power	4600W
Screen	4.3'' full color touch screen, multi-language
Print Method	USB Connectivity/USB Disk

Mechanical

Cooling	Air pump cooling & water cooling
Platform	PCB aluminum + PEEK print board
Positioning Precision	X Y axis 0.0127mm, Z axis 0.00125mm
Extruder	Directly Drive
Machine Construction	Fully enclosed hot chamber
Bed Leveling	Manually/Automatic

Temperature

Nozzle Max. Temperature	500℃
Chamber Temperature	120℃
Platform Max. Temperature	200℃
Direct Annealing Temperature	0~400℃

Software

Software	Creatware, Simplify3D, Cura, Slic3r
Operating Systems	Win7/8/10
Print File Type	STL, OBJ, AMF, Gcode

Special Function

Outage Restored	Save data when power is off
Filament Detection	Pause printing when filament run out
Direct Annealing System (DAS)	Annealing process is instant controllable during printing. It aims to provide best quality parts in one time without warping and cracking printing of big size functional materials.
Heat insulation	Triple heat insulation
Emergency stop switch	Support emergency stop
High temperature accessories	High temperature resistance motors, linear rails, belts and circuits to ensure long time high temperature printing.
