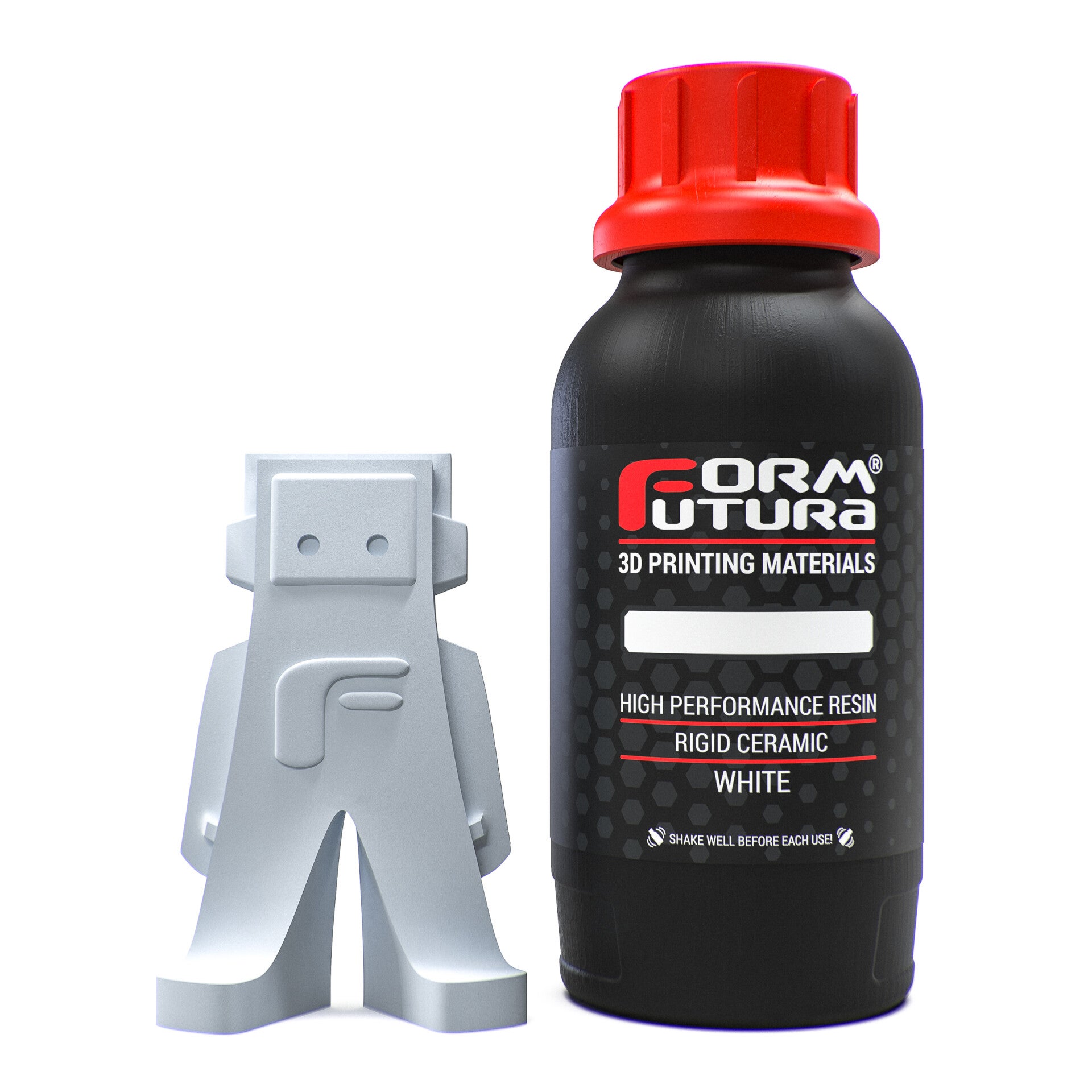

High Performance Series – Rigid Ceramic Resin

Please see below some basic print settings for a variety of wide used printers.

Phrozen Sonic Mini 4K

50µm
First / Burn-in Layers: 2x to 4x for 70 to 75 Seconds
Normal Layers: 7 to 9 Seconds

Anycubic Photon

50µm
First / Burn-in Layers: 4x to 3x for 110 to 120 Seconds
Normal Layers: 16 to 18 Seconds
Light-off Delay: 1
Bottom Light-off Delay: 2

Anycubic Photon Mono SE

50µm
First / Burn-in Layers: 4x to 6x for 65 to 75 Seconds
Normal Layers: 6.5 to 7.5 Seconds
Lifting Distance: 8mm
Light-off Delay: 0.5
Bottom Light-off Delay: 3

Anycubic Photon Mono X

50µm
First / Burn-in Layers: 3x to 5x for 75 to 80 Seconds
Normal Layers: 5.5 to 7 Seconds
Lifting Distance: 8mm
Light-off Delay: 1
Bottom Light-off Delay: 3
UV Power: 85 ~ 90%

*If you need the best settings for your 3d printer we highly recommend using the included RERF (Resin Exposure Range Finder) or Resin Exposure Calibration Tool.
This is most likely included with the 3d printer usb stick and or manual.

• Shake the bottle for at least 2 minutes before each use.
• After shaking the bottle, leave the resin to rest for 10 minutes to let air bubbles get out of the resin
• The resin can be poured back from the vat into the bottle once your print is finished
• Always use protective measurements like safety glasses and nitrile gloves when handling resins.

• We do advise you to post-process your 3D print in order to achieve the material properties
• Rinse your 3D printed object in IPA or (Bio)Ethanol for approximately 5-10 minutes
• An ultrasonic cleaner is preferred/recommended
• Make sure that IPA and/or (Bio)Ethanol rinsed objects are perfectly dry before further post-curing to prevent warping or cracking.
• Place the rinsed parts in a well-ventilated area for at least 4 hours, or use pressurized air for at least 5 minutes
• Cure your object in a high power curing chamber (like the CUREbox™ Plus) for approximately 60 minutes at 65°C
  And after that approximately 2 hours of thermal curing at 100°C. The preferred curing wavelength is between 300-410nm

Please always be aware that when 3D printing with resins that you are working with chemicals and that you should always be cautious and use the personal protective equipment as stipulated in our safety data sheets.

• Always wear Respiratory Protection when sanding/cutting the resin object.
• Always use nitrile gloves when handling resins and uncured resin objects.
