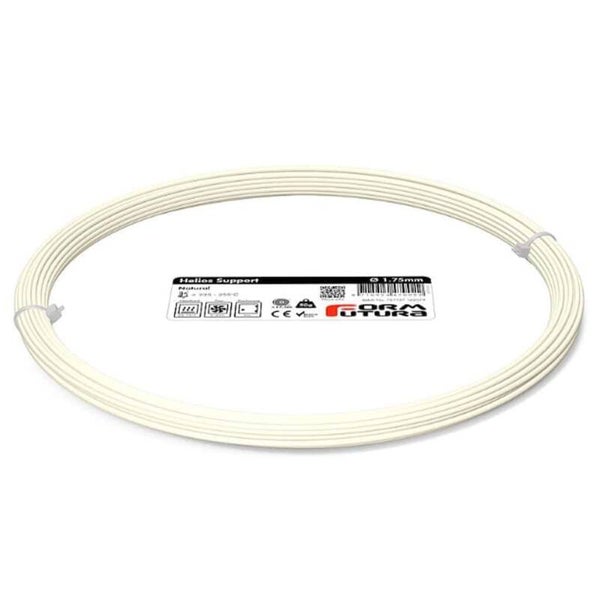

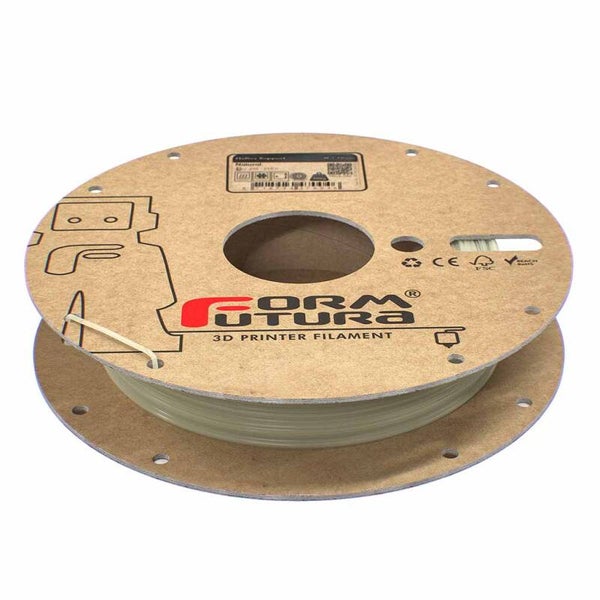

Formfutura Helios Support 1.75mm | Natural

£7.99
Item number: 8718924470022

Key Features:

    • Good solubility in lukewarm water
    • Circulating water will speed up the dissolvability process
    • Excellent thermal stability, resulting in minimal risk on deterioration/crystalizing inside the nozzle
    • Max thermal stability of 250° C, tested up to 256 seconds with no flow
    • Can be printed in heated build chambers up to 60° C
    • Biodegradable once dissolved in water
    • Safe dissolution in tap water
    • Can be disposed of in the kitchen sink, or household drain with an excess of water
    • Good bonding to Styrene-based materials and other (thermo)plastics that print within a similar temperature range
    • Good adherence to ABS, TitanX, ClearScent ABS, ApolloX, Crystal Flex, Python Flex and Volcano PLA

    Application:

    • Reliable multi-extrusion 3D printing of complex structures that require a water-soluble support material
    • 3D printing geometries with large overhangs, or complex hollow structures
    • PVA Molds
    Helios Support is a water-soluble PVA (polyvinyl alcohol) support material for complex multi-extrusion 3D printing with styrene-based materials, or thermoplastics that need to be 3D printed at elevated temperatures. Helios Support is a 3D printer filament with excellent thermal stability that can be 3D printed at nozzle temperatures up to 250° C. This makes Helios Support an ideal PVA support material with good thermal and chemical adherence to Styrene-based filaments and other materials that need to be 3D printed at higher temperatures.
    Diameter 1.75mm
    Tolerance ± 0.05mm
    Roundness ≥ 95%

    Temperature

    Print temp: 235 - 255° C

    Heat bed: 65 – 75° C

    Printing Speed

    Fan

    Fan speed: 0 - 30%

    Surface

    Closed Chamber

    No required

    Nozzle Diameter

    ≥ 0.15mm


    Documents

    TECHNICAL DATA SHEET
    PDF – 185.7 KB 203 downloads
    SAFETY DATA SHEET
    PDF – 279.0 KB 207 downloads

    Manufacturer

    • FormFutura

    Helios Support Prints
